Auger Conveyor for Biomass Materials

Process Function

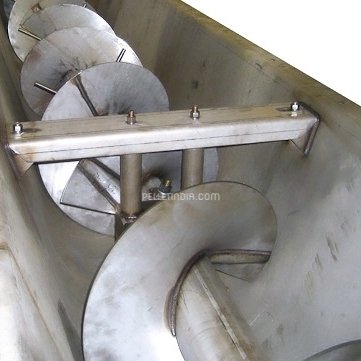

Auger Conveyor is an efficient solution for transporting bulk biomass materials in various stages of processing. It uses a helical screw blade inside a tube or trough to move materials forward through continuous rotation, ensuring minimal material loss.

This conveyor system is widely used in biomass handling plants due to its ability to manage fibrous, flaky, or powdery materials effectively. The design supports horizontal or inclined installation, making it adaptable for different facility layouts.

Technical Features

Feature	Specification
Material Construction	Stainless Steel (SS) for corrosion resistance, Mild Steel (MS) for cost-effectiveness
Capacity	Up to 20 tons/hour
Auger Diameter	150mm to 500mm
Screw Pitch	150mm to 300mm
Trough Design	U-shaped or Tubular with optional dust cover
Length	3m to 30m (customized)
Motor Power	5 kW to 30 kW
Inclination	Horizontal or inclined up to 45°
Surface Finish	Polished SS or Painted MS
Bearings	Heavy-duty sealed bearings
Drive Type	Direct or Chain-driven
Discharge Options	Single or multiple discharge with flow control gates

Application

🔹 Biomass Power Plants
🔹 Wood Processing Units
🔹 Agricultural Waste Handling
🔹 Pellet Manufacturing
🔹 Composting Facilities
🔹 Biofuel Production Plants
🔹 Rice Mills & Sugar Mills
🔹 Farming Residue Management

Process Raw Materials

Wood Chips, Sawdust, Rice Husk, Wheat Straw, Bagasse, Napier Grass, Corn Stalks, Coconut Husk and Shell, Coffee Husk, Peanut Shells, Cotton Stalks, Palm Husk, Forestry Waste, Mulberry Sticks, Sunflower Stalks, Bamboo Dust, Sugarcane Leaves, Paddy Straw.
