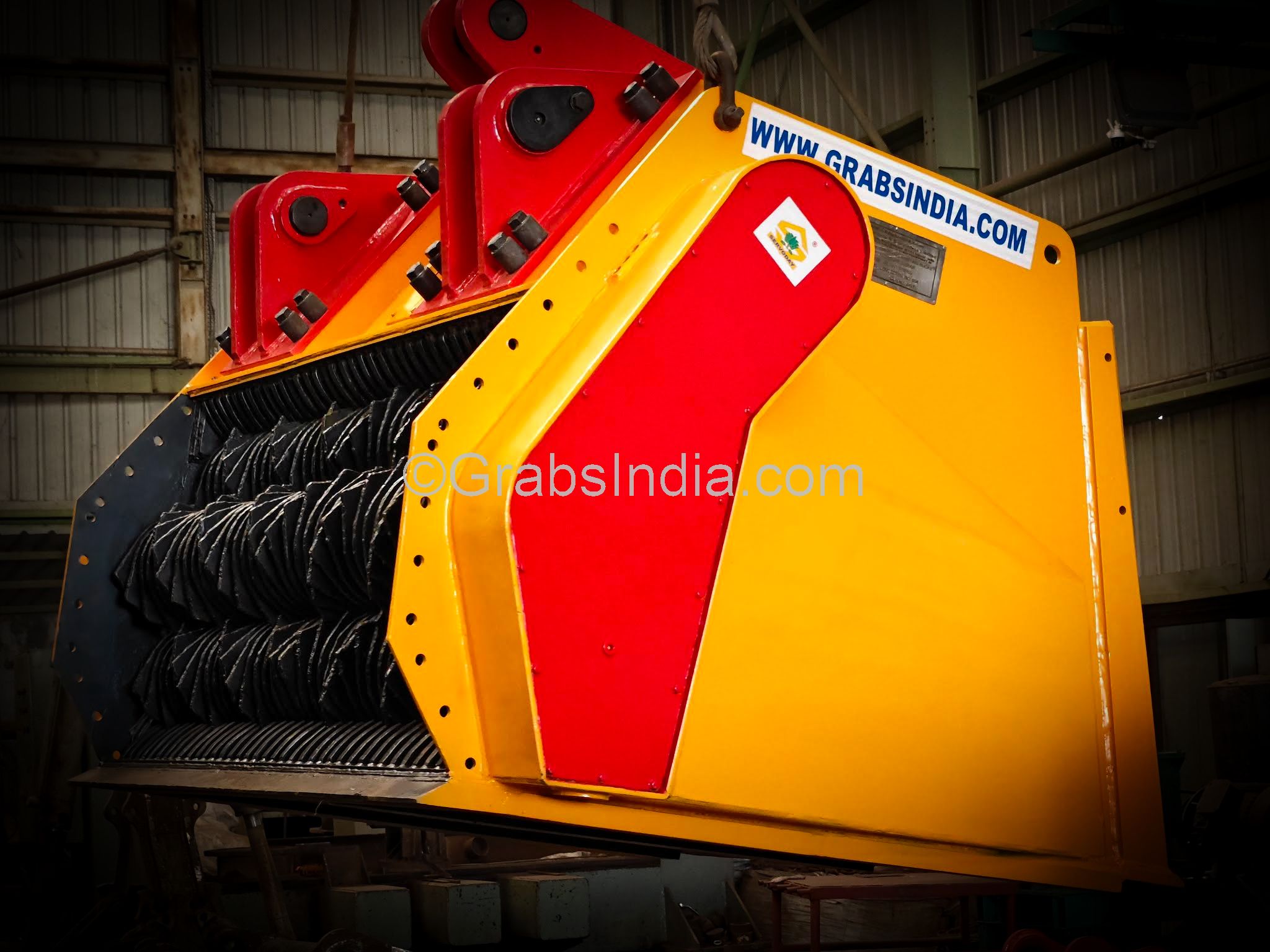

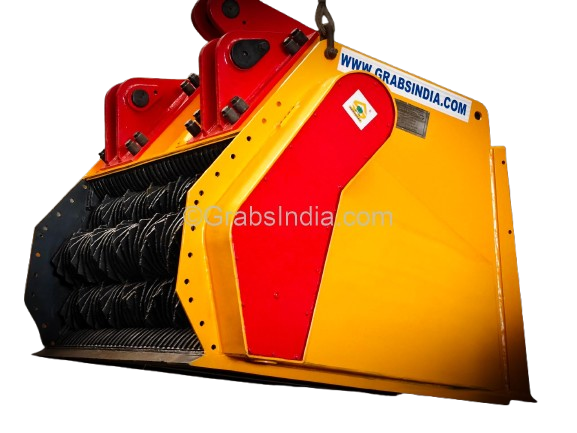

Screening Crush Bucket

Process Function

The Screening Crush Bucket is a multifunctional attachment used for on-site material processing. It enables efficient crushing and screening of various raw materials directly at the construction or demolition site, minimizing transportation and operational costs.

---

Technical Features

Feature	Description
Bucket Body Material	High-strength wear-resistant steel (HARDOX / SUMIHARD)
Rotary Shaft	Heavy-duty shaft with replaceable blades
Screening Grid Sizes	Interchangeable mesh sizes available (customizable)
Drive System	Hydraulic motor powered by excavator/loader hydraulics
Crushing Mechanism	Twin rotary blades for crushing and grinding
Weight Range	1.2 – 3.5 Tons (depending on model)
Compatible Machines	Excavators (10 to 40 Tons), Loaders
Maintenance	Easy access to components, grease points for lubrication
Output Size Range	0-20 mm, 0-50 mm, 0-80 mm (adjustable)
Working Efficiency	Up to 30-80 m³/hour depending on material type

---

Application

🔨 Demolition Waste Recycling
🌿 Composting & Soil Processing
🏗️ Construction & Earthmoving Projects
🧱 Brick, Concrete & Asphalt Crushing
🏞️ Landscaping & Topsoil Screening
🪵 Green Waste & Biomass Preprocessing
🪨 Aggregate Reduction & Pre-Screening
🚧 Road Maintenance & Pipeline Backfilling

---

Process Raw Materials

• Demolition debris (concrete, bricks)
• Excavated soil and topsoil
• Compost and organic green waste
• Aggregates and gravel
• Asphalt chunks
• Biomass and wood waste
• Pipeline trench material
• Mining overburden

---

---

---

---

---
