🔧 Dual Track Horizontal Ring Die Pellet Mill – Technical Overview

✅ Definition

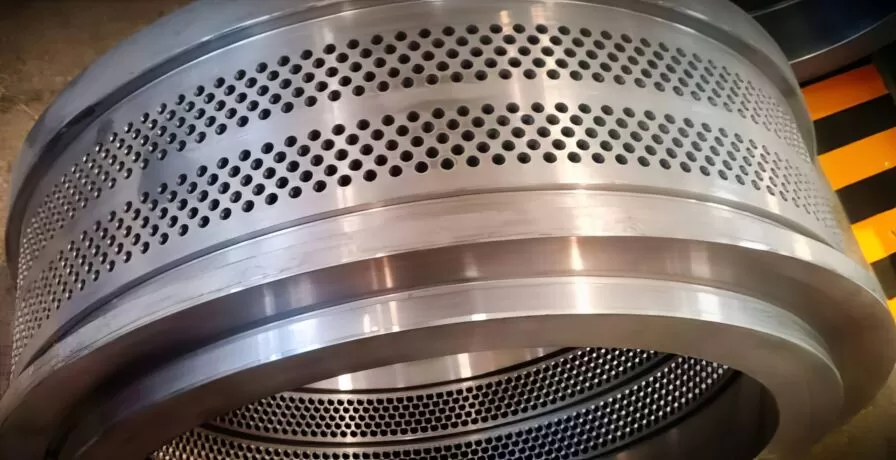

A Dual Track Horizontal Ring Die Pellet Mill features a horizontally mounted ring die with two compression rollers (dual track), offering increased efficiency, throughput, and extended usable die surface.

⚙️ Technical Specifications

Feature	Specification / Description
Die Type	Ring Die – Horizontal Orientation
Tracks	Dual (Two rollers)
Capacity	~2 Tons Per Hour (based on biomass)
Die Hole Sizes Available	6 mm, 8 mm, 10 mm
Pellet Diameter	6, 8, 10 mm (interchangeable dies)
Main Motor	160 – 350 kW (varies by model)
Feeder System	Variable frequency drive, with optional conditioner
Gearbox Type	One-piece cast iron with oil circulation
Lubrication	Centralized automatic grease system
Bearings	SKF / FAG / INA standard
Rollers	Hardened alloy steel, dual track system

🔍 Die Life & Output (Corrected Values)

Parameter	Value
Die Life (Hours)	~350 hours (single side)
Die Output (Tonnage)	700 tons × 2 passes = 1,400 tons (due to dual track utilization)
Pellet Output per Hour	~2 TPH (Tons Per Hour)
Total Runtime per Die	~350 hours (depending on raw material, wear conditions)

⚠️ Note: Die life varies based on raw material hardness, moisture, and operator handling. Dual track setup effectively doubles the usable surface area of the die, offering better utilization and longer production runs before die replacement.

📊 Comparison: Ring Die (Dual Track) vs. Flat Die Pellet Mill

Feature	Ring Die (Dual Track)	Flat Die
Pellet Output/hr	2 TPH	100–800 kg/hr
Die Utilization	2× paths (dual roller tracks)	Single track
Die Life (Hours)	~350 hrs (single track)	100–200 hrs
Die Output (Tons)	~1,400 tons (dual track)	~200–400 tons
Pellet GCV & Density	Higher – better compression	Lower – loose pellets
